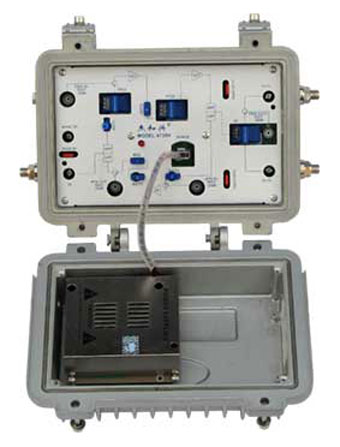

※ For CATV trunk line outdoor use,water-proot

※ with a bridge output.

※ Doubl moudules, power doubling amplity

※ All alloy die cast housing,wealther proof good heat-spread function.

※ All port 5/8 -24 unef with ks-f connector

※ May feed by input ,outputand bridge

※ 220VAC singlel power supply or 60V central power supply

ITEM

UNIT

Forward Path

Return Path

RP

RA19

Frequency range

MHz

87～750/87～860

5-65

5-65

Nominal gain

dB

30

33

36

-4

19

Flatness within band

dB

±0.75

±0.75

Return loss

dB

≥ 16

≥ 16

Nominal input level

dBμV

72

77

Nominal output level

dBμV

102

105

108

-

-

Max. output level

dBμV

-

-

≥110

C/N

dB

≥74

≥72

≥66

-

C/CTB

dB

≥68

≥66

≥63

-

dB

-

≥52

Gain control

dB

Fixed:1～9dB,1dB/step;10～20dB,2dB/step

Fixed:2～20dB,2dB/step

Slope control

dB

Fixed:2～20dB,2dB/step

Fixed:2～14dB,2dB/step

Input testports level

dB

-20±1

Output testports level

dB

-20±1

nput/output impedance

Ω

75

dB

≥66

Noise figure

dB

≤8

Operating Temperature

℃

－30～60℃

kV

5（10/700μs）

V

220 OR 60

mm

290×225×120

Kg

5.1
