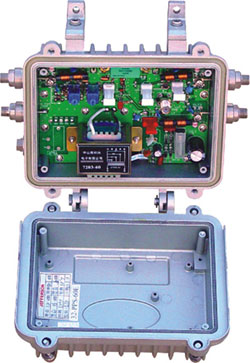

※ Compact size,full function

※ with a bridge output

※ single modual push pull amplitying auto SMT technology ? swtch power or toroidal transformer

※ all alloy die cast housing,wealther proof good heat-spread function.

※ All port 5/8-24 unef with ks-f connector

※ attenuator continually adjustable,equalizer inserter optional

※ 220VAC singlel power supply or 60V central power supply

ITEM

UNIT

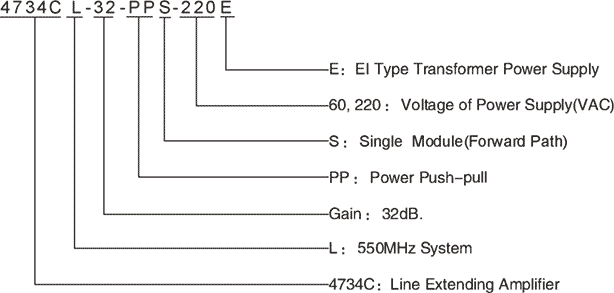

4734CL-32-PPS-60E

Frequency range

MHz

47～550

Nominal gain

dB

32

Flatness within band

dB

≥0.5

Nominal input level

dBμV

72

Nominal output level

dBμV

104

Max. output level

dBμV

-

C/N

dB

≥63

C/CTB

dB

≥65

dB

-

nput/output impedance

Ω

75

Return loss

dB

≥ 16

Gain control

dB

0-20 dB(adj.)

Slope control

dB

0-20 dB(adj.)

Input testports level

dB

-20±1

Output testports level

dB

-20±1

dB

≥66

Noise figure

dB

≤8

Operating Temperature

℃

－30～60℃

kV

5

V

60 or 220

mm

230×195×103

Kg

2.0
